Scale Your Storage With
Universal Teardrop Pallet Racking

Standardize your warehouse storage with North America's most interchangeable rack architecture. Teardrop punching enables tool-free pin locking, 2-inch vertical adjustability, and effortless beam reconfigurations to adapt instantly as pallet profiles change.
Contact

modular interchangeability

Engineered for Fast Assembly &
Universal Compatibility

Built around the industry-standard inverted teardrop punch pattern, this modular system locks horizontal step beams directly into upright columns using gravity-assisted tapered pins. You eliminate loose nuts, bolts, and specialized field tooling—slashing erection labor and downtime. Because the teardrop profile delivers broad interchangeability across major North American manufacturers, you can expand existing runs, swap shelf elevations, or replace damaged uprights without replacing your entire rack infrastructure.
Design

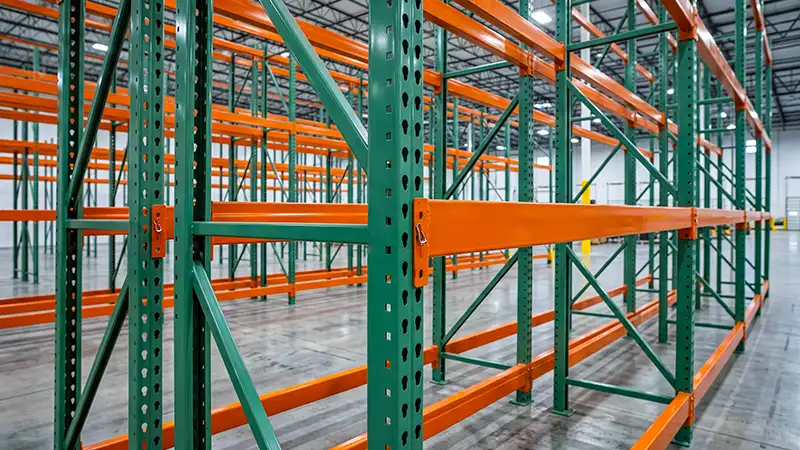

teardrop pallet racking organized against a warehouse wall.

system advantages

Why Choose Teardrop Racking

Standardize your material handling footprint with the industry’s most interchangeable, rapidly deployed, and low-maintenance racking profile.

Cross-Brand Interchangeability

Connects seamlessly with standard teardrop uprights and step beams from major North American manufacturers.

Boltless Gravity Wedge Locking

Seats pins securely into tapered punch slots under gravity, eliminating nuts, bolts, and complex fasteners.

2-Inch Vertical Adjustability

Reconfigure shelf levels in 2-inch vertical increments to match evolving pallet profiles and product heights.

Positive Auto-Lock Safety Pins

Prevents accidental beam dislodgement from upward forklift tine impact with integrated spring-steel safety locks.

Low Cost of Maintenance

Replace individual damaged uprights or beams quickly from stock inventory without custom fabrication costs.

Rapid Turnaround Deployment

Speeds erection timelines by up to 40% so your distribution center gets operational days ahead of schedule.

Heavy-Duty Capacity Options

Accommodates beam loads exceeding 10,000 lbs per pair and upright capacities over 35,000 lbs for industrial storage.

Drop-In Decking Integration

Natively seats standard flared and step wire mesh decking, solid decking, and heavy-duty pallet support crossbars.

technical specifications

Teardrop Pallet Racking Technical Specifications

To assist in your facility planning, warehouse design, and CAD layout, WDRacks supplies standard, heavy-duty industrial storage components engineered to meet rigorous national safety standards.
ComponentStandard RangeNational / Standard Engineering Specs
Upright Frame Heights8 feet to 35+ feetAvailable in standard roll-formed and reinforced column-front profiles for severe high-traffic forklift aisles.
Upright Frame Depths36", 42", and 48" depthsUniversal teardrop punch pattern fully compatible with major North American teardrop systems.
Upright Frame CapacityUp to 45,000 lbs capacityContinuous-weld uprights with dual-ribbed column faces for superior torsional rigidity and heavy load ratings.
Step Beam Span Lengths4' (48") to 12' (144") spansStandard 1-5/8" step accommodates universal drop-in wire mesh decking, pallet support bars, and row spacers.
Shelf Level Load Capacity2,500 lbs to over 8,000 lbs per pairToolless gravity lock pins engage automatically into teardrop punch slots for rapid, reliable beam adjustments on 2" centers.
Seismic Bracing & FootplatesConfigured per localized seismic zonePre-punched heavy-gauge footplates engineered for seismic anchor embedment depth per localized IBC/RMI criteria.
Permitting & EngineeringLocal Building & Fire DepartmentComplete CAD floor drawings, slab capacity verification, and PE wet-stamped calculations coordinated with inspectors.

UNIVERSAL BOLTLESS STORAGE

Interchangeable Teardrop
Racking Systems & Supply

Modular Framing with Maximum Flexibility

North America’s most popular racking profile. Boltless pin-locking allows quick beam elevation adjustments, easy bay expansion, and universal cross-brand compatibility.

Prompt Layout Sizing

Fast engineering review of frame depths, beam spans, and concrete slab load capacities.

Certified Installation & PE Stamps

Turnkey high-pile seismic calculations, CAD layouts, and certified nationwide installation crews.

Extensive In-Stock Inventory

Immediate dispatch of new and reconditioned teardrop frames, step beams, and wire decks.

INSTANT CAPACITY ESTIMATE

Get a Teardrop Rack Quote

Share your upright heights, beam lengths, and weight-per-level for an engineered bill of materials.

Provide phone, email, or both — at least one is required.
No obligation. We never sell or share your contact information.

faqs

Frequently Asked Questions

Straight answers to common questions about teardrop pallet rack specifications, compatibility, and capacities.

What defines "Teardrop" pallet racking and how does it work?

Teardrop racking gets its name from the inverted teardrop-shaped punch holes spaced along the front face of each upright column. Horizontal step beams feature round connector rivets that slide into the wide top of the teardrop and seat downward into the narrow bottom slot. Under gravitational load, the connection wedges tighter, creating a rigid, bolt-free framework that assembles and reconfigures with minimal effort.

Are teardrop components interchangeable between different manufacturers?

Yes, teardrop is the undisputed industry standard across North America, designed to follow universal Interlake-compatible hole centers and pin spacing. While beams and uprights from reputable manufacturers generally fit one another, our structural engineers always verify steel gauge thickness, connection tolerances, and seismic engineering stamps before mixing brands to ensure structural compliance.

How do safety locks prevent beam disengagement?

Every teardrop beam end-plate includes a secondary safety locking mechanism—either an automated spring-loaded clip, gravity pin, or heavy-duty J-bolt. When the beam seats into the column slot, the lock snaps through an adjacent hole. If a forklift operator accidentally bumps the underside of a beam while lifting a pallet, the safety lock prevents the beam from disengaging from the frame.

What standard dimensions are available for teardrop uprights and beams?

Teardrop upright frames are typically stocked in 42-inch depths for standard 48-inch pallets, alongside 36-inch and 48-inch depths, with heights ranging from 8 feet to over 36 feet. Step beams are commonly supplied in lengths of 96 inches (two-pallet bay), 108 inches, 120 inches, and 144 inches (three-pallet bay), with beam profile heights from 3 to 6 inches engineered to your load specifications.

What load capacities can teardrop pallet racks support?

Load capacity is determined by steel gauge (typically 12 to 14-gauge high-tensile steel), column dimensions, and vertical beam spacing. Standard teardrop upright frames support between 16,000 and 40,000+ lbs, while beam pairs commonly support from 2,500 to over 10,000 lbs per tier when weight is uniformly distributed.

What accessories and decking options work with teardrop racking?

Teardrop step beams feature a standard 7/8-inch internal step that accommodates flush drop-in wire decking, flared waterfall wire decks, pallet support crossbars, column protectors, post guards, and row spacers. Wire decking improves fire sprinkler penetration for NFPA compliance while preventing undersized or broken pallets from falling through beam tiers.

Do you provide seismic engineering calculations and turnkey installation?

Yes. We deliver turnkey warehouse solutions including AutoCAD layout drawings, professional engineer (PE) stamped structural and seismic calculations, municipal high-pile permit procurement, and certified professional nationwide installation.
