Pallet Racking Safety: Spotting the Damage Before a Sudden, Catastrophic Rack Collapse

Warehouse Safety

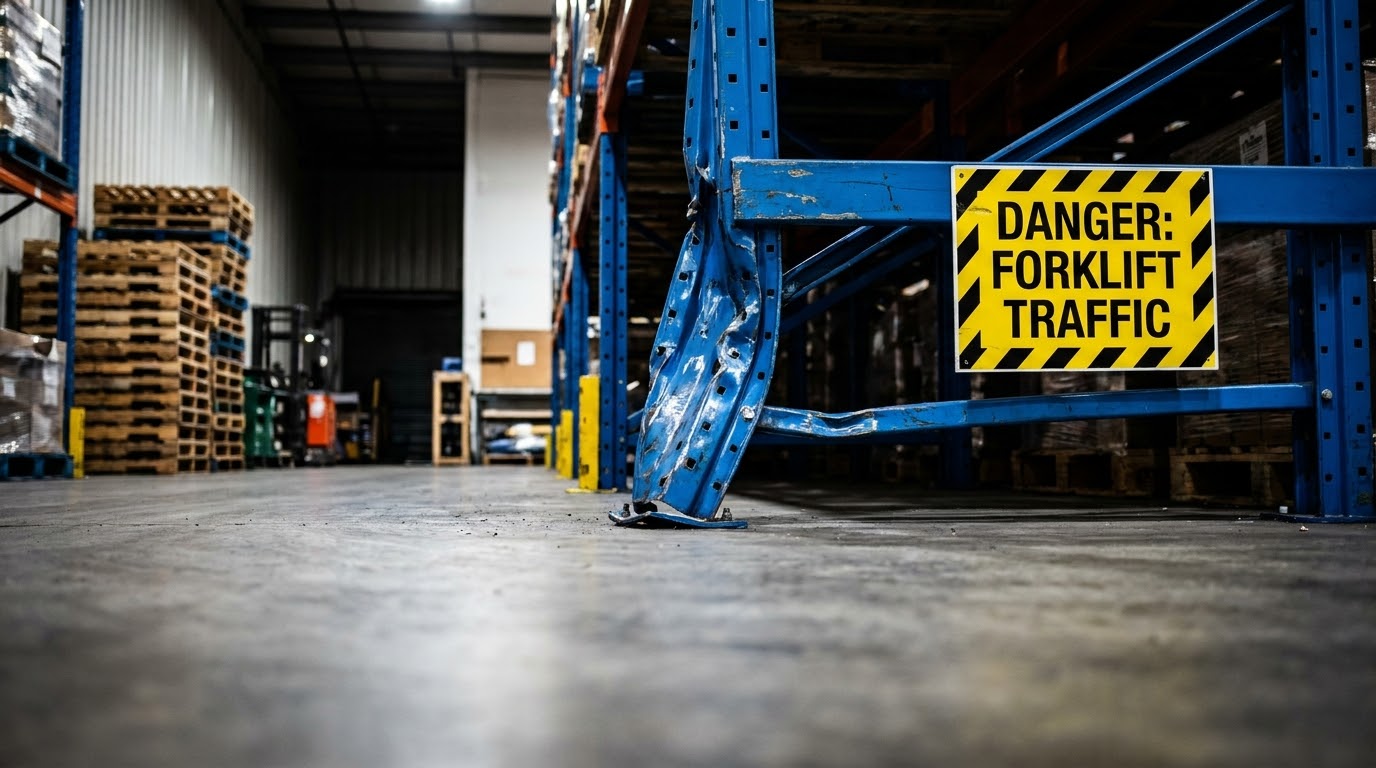

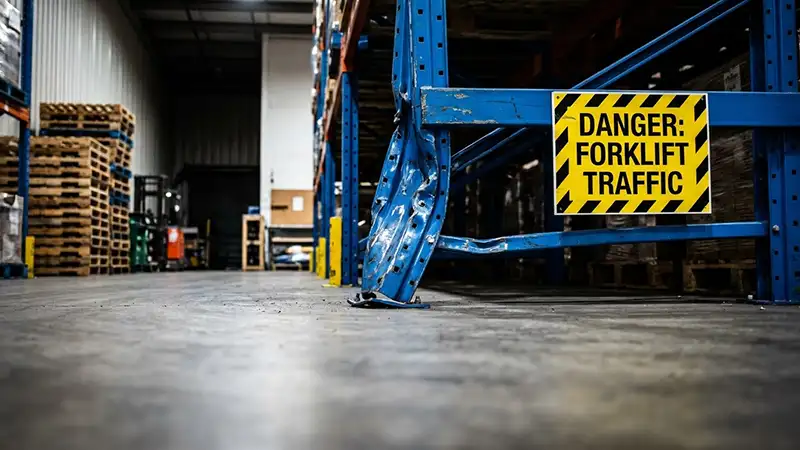

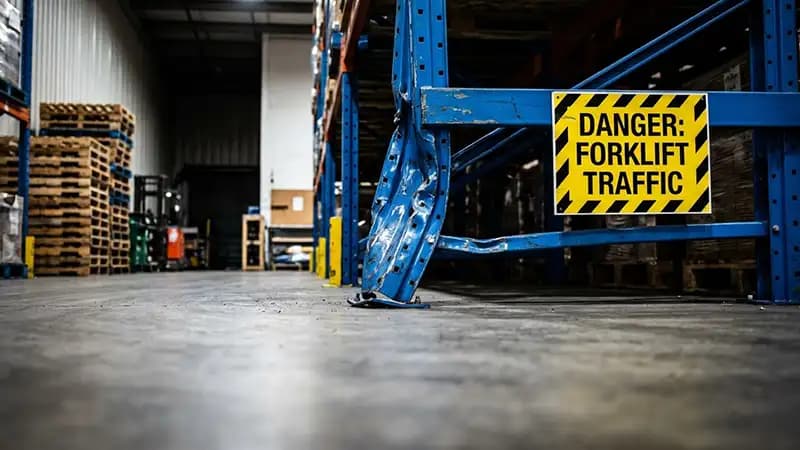

Fig 1.1: Warehouse racking damage can lead to catastrophic rack collapse.

Forklifts are the workhorses of the warehouse. They are also 9,000-pound battering rams. In a fast-paced loading dock, drivers turn tight corners, back up in narrow aisles, and occasionally clip the vertical frames of your pallet racking.

Many warehouse managers look at a small bend or a minor dent in an upright column and think, "It's just cosmetic. It's fine. We'll fix it later."

This is an incredibly dangerous assumption. Pallet racking is engineered with thin-gauge, high-tensile steel designed to hold massive vertical weight. The moment that steel is dented, warped, or twisted, its load capacity is compromised. A single forklift bump can reduce an upright frame's load-bearing strength by up to 90%, turning your warehouse into a ticking time bomb.

A sudden rack collapse doesn't just destroy inventory—it ruins forklift equipment, triggers massive OSHA fines, shuts down shipping, and leads to severe injuries or fatalities.

Here is how to run a strict pallet racking safety inspection program to spot the structural damage before it is too late.

Your shift supervisors and team members should be trained to run a visual check daily. Look for these three critical structural warning signs:

Strike 1: Vertical Frame and Column Damage
Look closely at the bottom 12 to 24 inches of your upright frames. This is where 95% of forklift impacts occur.

• The Deflection Rule If a vertical column has a frontal or lateral dent, bend, or twist that deflects more than 0.5 inches (1/2") from a straight vertical line, that rack must be unloaded immediately and marked out of service.
• Steel Tears Any visual tearing or ripping of the steel column is an immediate structural failure.

Strike 2: Damaged Horizontal or Diagonal Bracing
Horizontal and diagonal struts are welded or bolted between the front and back columns of an upright frame to keep the structure from twisting.

• If these bracing struts are bent, bowed, or have cracked welds, the upright frame is no longer stabilized against lateral forces.
• If a forklift clips a braced section, the frame can easily buckle sideways under load.

Strike 3: Missing Safety Pins, Sheared Anchors, and Damaged Beams
Inspect the horizontal beams and their connection points to the upright frames:

• Missing Safety Pins: Every beam-to-frame connection must have a steel safety lock pin or clip. This stops a forklift from accidentally lifting and dislodging a beam when picking a pallet. If you use plastic zip ties or bolts instead of engineered safety pins, you are violating code.
• Missing Anchor Bolts: Every single upright leg must be anchored securely to the concrete floor with heavy expansion bolts. If you spot a leg with loose, sheared, or missing anchor bolts, it is a major OSHA violation.
• Horizontal Beam Deflection: Horizontal beams naturally bow slightly under load. However, the temporary deflection should never exceed the length of the beam divided by 180 (e.g., a 96-inch beam should never bow more than 0.53 inches under weight). If the beam stays bent permanently after the pallet is removed, the steel is fatigued and must be replaced.

If your team spots a rack that violates any of the safety guidelines above, do not wait. Follow this standard safety protocol:

1. Isolate and Unload: Immediately unload all pallets from the damaged bay and the adjacent bays on either side. Do not let workers enter the aisle.
2. Tag-Out:Hang highly visible red "DANGER - DO NOT LOAD" tags on the frame. Use caution tape to block off forklift entry into that specific racking bay.
3. Inspect or Replace:Contact a professional racking engineering company to determine if the upright can be repaired with an engineered, bolted-on sleeve kit, or if the entire upright frame must be torn down and replaced.
4. Install Preventative Guarding: Once the repair is complete, don't leave the steel exposed. Install heavy-duty steel column protectors (post guards) bolted to the concrete floor directly in front of the uprights. Bolt down end-of-row guard rails at your high-traffic aisle intersections.

At wdracks.com, warehouse safety is at the core of everything we do. We help logistics directors and facility managers across all 48 continental states establish bulletproof safety standards.

• Professional Safety Inspections: We conduct comprehensive physical audits of your entire racking layout, identifying bent columns, missing safety pins, unanchored legs, and overloaded shelves.
• Turnkey Repair and Replacement: Our crew unloads, dismantles, and replaces damaged frames and beams safely, ensuring zero disruption to your daily operations.
• Heavy-Duty Guarding and Post Protectors: We supply and install heavy steel column guards, end-of-row guardrails, and heavy-duty concrete anchors to bulletproof your racks against future forklift collisions.

A safe warehouse is a profitable warehouse. Don't risk your team's lives or your inventory.

Schedule a professional racking safety audit with wdracks.com today.
