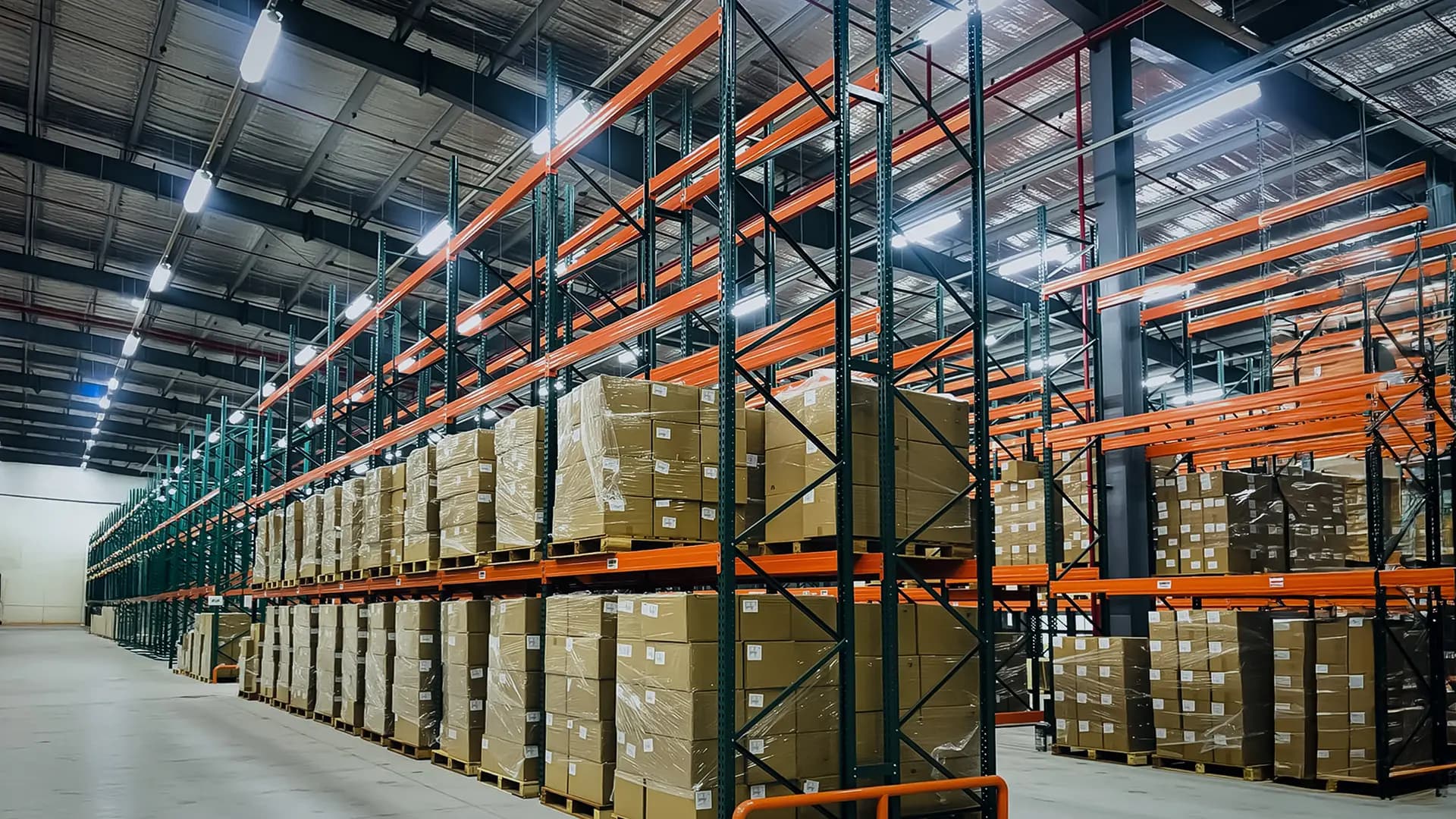

Your inventory changes size, so your racks need to change too. Teardrop uprights let you knock out a safety pin and adjust beam levels in minutes without heavy tools. Keep your Chino, CA storage layout flexible and ready for anything.
- ✓Seasonal inventory environments
- ✓Operations handling mixed pallet heights
Throwing heavy loads on teardrop beams without verified ratings will get your Chino warehouse shut down. The City of Chino Hills Building and Safety checks your beam capacities during audits. Reach out to them at (909) 364-2780 or visit 14000 City Center Dr, Chino Hills, CA 91709 to lock in your paperwork near Planes of Fame Air Museum / Chino Hills State Park. SEISMIC: Make sure your teardrop frames have the right baseplates installed to withstand a major seismic event.
Standard Technical Specifications
To assist in your initial facility design, layout, and CAD planning, WDRacks supplies a wide range of standard, durable industrial storage components:
| Component | Standard Range | Chino, CA Specs |
|---|---|---|
| Upright Frame Heights | 8 feet to 35+ feet | Tailored to match local clearance height limits in Chino. |
| Upright Frame Depths | 36", 42", and 48" depths | Custom-spaced steel frames optimized for CA warehouses. |
| Upright Frame Capacity | Up to 45,000 lbs capacity | Rated up to 45,000 lbs (subject to localized seismic calculations). |
| Step Beam Span Lengths | 4' (48") to 12' (144") spans | In-stock inventory ready for dispatch to your Chino facility. |
| Shelf Level Load Capacity | 2,500 lbs to over 8,000 lbs per pair | Standard teardrop and heavy structural options available in CA |
| Seismic Bracing | Configured per localized seismic zone | Engineered baseplates scaled to meet municipal codes in Chino. |
| Local Permitting Agency | Local Building & Fire Department | Certified submittals coordinated directly with Chino building inspectors. |
Guaranteeing Compatibility with Your Legacy Teardrop Beams
You should not have to replace perfectly good beams just because you need new uprights. We physically inspect your existing inventory and source universal teardrop frames that lock perfectly into your legacy steel, saving you substantial capital on upgrades.
Gravity-Locking Kinematics in Teardrop Pallet Racking
Teardrop pallet racking employs a geometric gravity-locking node architecture, translating downward payload force into enhanced structural joint rigidity. Implementing this ubiquitous storage framework in a Chino facility requires precise calibration of the beam-to-frame connection tolerances to prevent vertical displacement and ensure uniform load transfer across the upright columns.
- ✓Calibrate geometric gravity-locking node connection tolerances.
- ✓Audit uniform load transfer limits across vertical uprights.
- ✓Verify safety clip shear resistance against vertical displacement.
Technical Inquiry: Q&A
Question
"Is the yield strength of cold-rolled teardrop uprights compromised when retrofitting legacy racking systems with modern high-capacity beams in Chino, CA?"
Miranda Blake Enterprise Account Executive
Retrofitting introduces the risk of metallurgical incompatibility. Engineers must verify the gauge thickness and steel tensile strength of the legacy upright frames. If the new high-capacity beams induce stress beyond the original frame's critical buckling threshold, the entire matrix will fail under maximum payload.
Finding Teardrop Racks in Chino
Expanding your existing teardrop system is a breeze when you have the right partner. Off-the-shelf teardrop parts can be delivered very quickly to your CA facility, and we always work hard to fit your budget. Give us a call, and we will help you easily match your current setup.
Teardrop Rack Compatibility FAQ
Q: Why is teardrop racking the standard in Chino warehouses?
Q: Can I mix old and new teardrop steel?
Q: Is teardrop racking hard to assemble in Chino?
