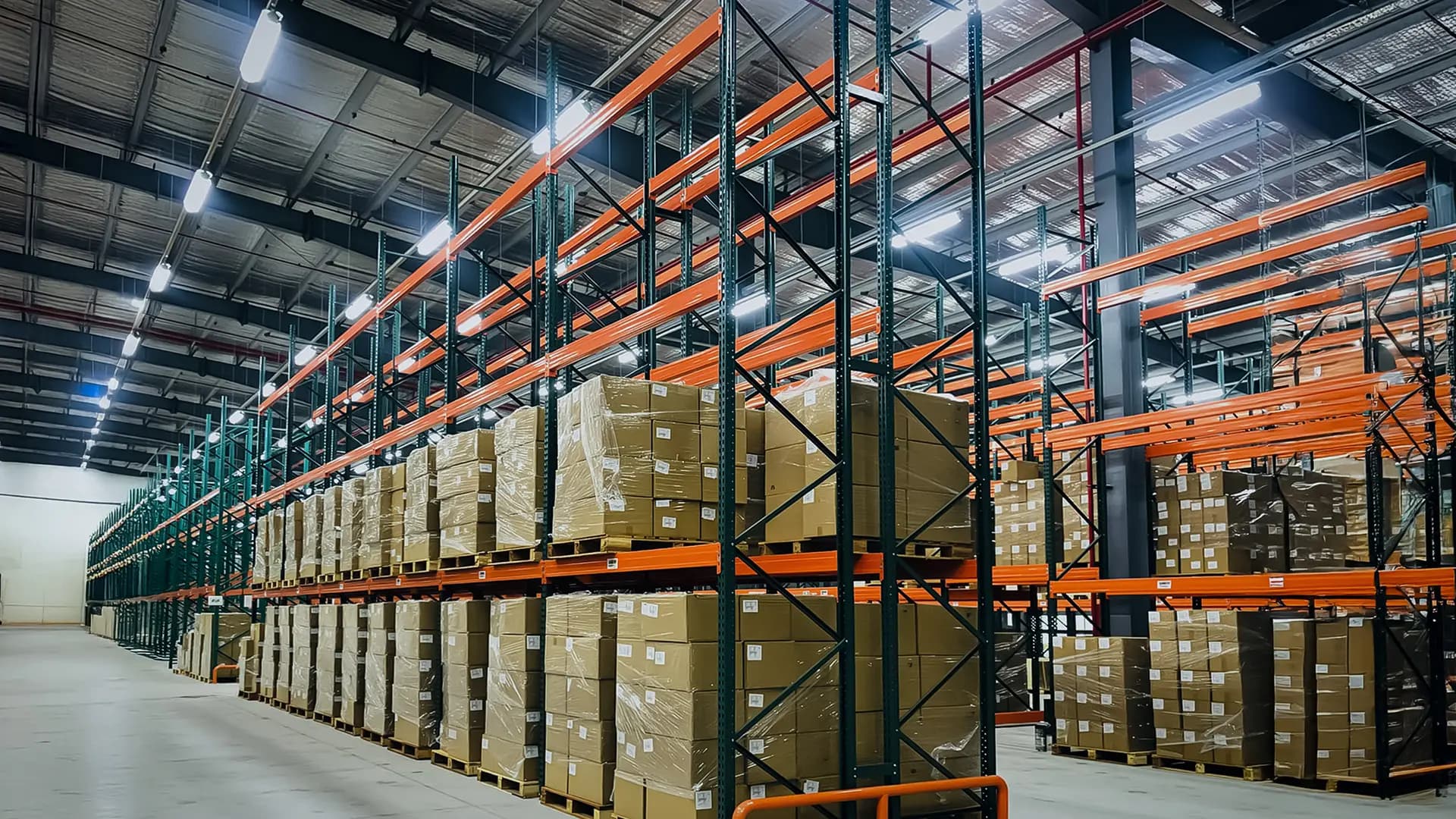

Weak connections cause rack failures and massive fines. Teardrop racks use a gravity-lock design that actually gets tighter as you load more weight. Secure your heaviest pallets and keep your Jersey City, NJ drivers completely safe.
- ✓High-capacity bulk storage
- ✓Standard logistics hubs
Teardrop pallet racking is universal, but you still need a permit to build it in Jersey City, NJ. The Construction Code Office demands exact capacity charts. Call (201) 547-5055 or walk into 1 Jackson Square, Jersey City, NJ 07305 to get your teardrop steel approved right around the corner from Liberty State Park | Offering the most iconic views of the Statue of Liberty and Manhattan.. SEISMIC: Standard teardrop uprights must be anchored with heavy-duty bolts that pass your specific seismic zone rating.
Standard Technical Specifications
To assist in your initial facility design, layout, and CAD planning, WDRacks supplies a wide range of standard, durable industrial storage components:
| Component | Standard Range | Jersey City, NJ Specs |
|---|---|---|
| Upright Frame Heights | 8 feet to 35+ feet | Tailored to match local clearance height limits in Jersey City. |
| Upright Frame Depths | 36", 42", and 48" depths | Custom-spaced steel frames optimized for NJ warehouses. |
| Upright Frame Capacity | Up to 45,000 lbs capacity | Rated up to 45,000 lbs (subject to localized seismic calculations). |
| Step Beam Span Lengths | 4' (48") to 12' (144") spans | In-stock inventory ready for dispatch to your Jersey City facility. |
| Shelf Level Load Capacity | 2,500 lbs to over 8,000 lbs per pair | Standard teardrop and heavy structural options available in NJ |
| Seismic Bracing | Configured per localized seismic zone | Engineered baseplates scaled to meet municipal codes in Jersey City. |
| Local Permitting Agency | Local Building & Fire Department | Certified submittals coordinated directly with Jersey City building inspectors. |
Guaranteeing Compatibility with Your Legacy Teardrop Beams
You should not have to replace perfectly good beams just because you need new uprights. We physically inspect your existing inventory and source universal teardrop frames that lock perfectly into your legacy steel, saving you substantial capital on upgrades.
Yield Strength Optimization via Teardrop Pallet Racking
Maximizing the structural efficiency of teardrop pallet racking necessitates comprehensive profiling of the roll-formed steel cross-sections and baseplate anchoring metrics. Erecting this matrix in a Jersey City warehouse demands meticulous calculation of the unbraced span lengths to mitigate localized column buckling under high-capacity cyclic static loads.
- ✓Profile roll-formed steel cross-sections for localized buckling resistance.
- ✓Calculate maximum unbraced span lengths under cyclic static loads.
- ✓Optimize baseplate anchoring metrics for structural efficiency.
Technical Inquiry: Q&A
Question
"How do the kinetic gravity-lock mechanisms of teardrop pallet racking maintain rigid structural node alignment during continuous MHE cyclic loading in Jersey City, NJ?"
Gavin Preston Warehouse Storage & ROI Consultant
The teardrop geometry translates downward gravitational force into progressive mechanical friction between the beam rivet and the upright punching. This wedging action, reinforced by mandatory safety locking pins, neutralizes upward beam displacement caused by inadvertent forklift mast collisions during cyclic loading.
Straightforward Pricing in NJ
While racking costs often vary based on current steel availability, our goal is always to provide you with the most honest, competitive quote possible. Let our Jersey City team handle the hard work. Click below to get a simple, free estimate.
Buying Teardrop Racking FAQ
Q: Should I buy used teardrop racking in Jersey City?
Q: Can I convert my old proprietary racking to teardrop?
Q: Does teardrop racking meet local fire codes?
